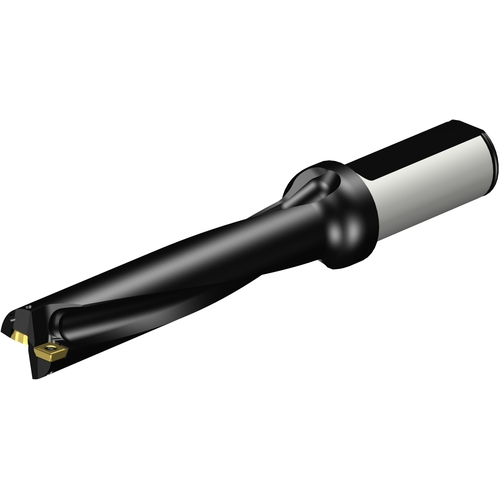

880-D2200L25-05 CORODRILL 880 U-DRILL
Indexable Insert Drill; 22 mm Dia. × 110 mm LU × 25 mm Shank Dia. × 187 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 22 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 110 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 13Degrees |
| Protruding Length (LPR) | 113 mm | Body Material | Steel |
| Functional Length (LF) | 130.62 mm | Decimal Equivalent | 0.8661″ |
| Overall Length (OAL) | 187 mm | Model Number | 880-D2200L25-05 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
1.043
