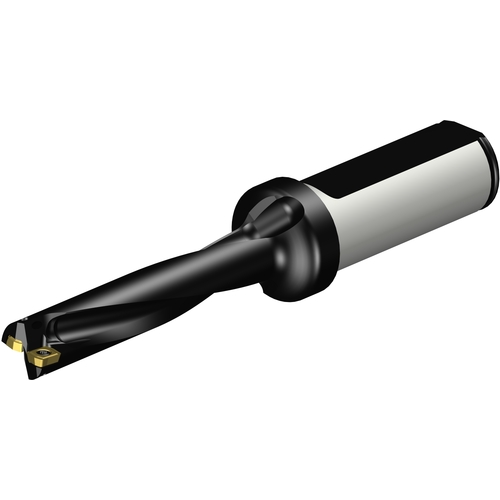

880-D1270L20-05 CORODRILL 880 U-DRILL
Indexable Insert Drill; 12.7 mm Dia. × 64 mm LU × 20 mm Shank Dia. × 129 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12.7 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 64 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 13Degrees |
| Protruding Length (LPR) | 66 mm | Body Material | Steel |
| Functional Length (LF) | 78.62 mm | Decimal Equivalent | 0.5″ |
| Overall Length (OAL) | 129 mm | Model Number | 880-D1270L20-05 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.467
