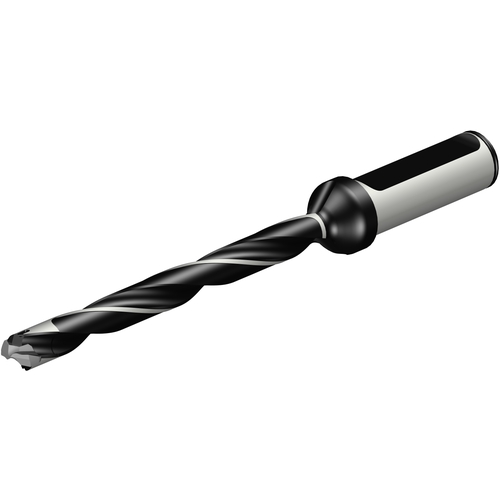

870-1000-6LX063-10 CORODRILL 870
Indexable Insert Drill; 0.409″ Dia. × 4.19″ LU × 5/8″ Shank Dia. × 6.693″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.409″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 4.19″ | Cutting Diameter Minimum (DCN) | 0.394″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Diameter Maximum (DCX) | 0.413″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 4.29″ | Helix Angle | 20Degrees |
| Functional Length (LF) | 4.74″ | Body Material | Steel |
| Overall Length (OAL) | 6.693″ | Decimal Equivalent | 0.409″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-1000-6LX063-10 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.353
