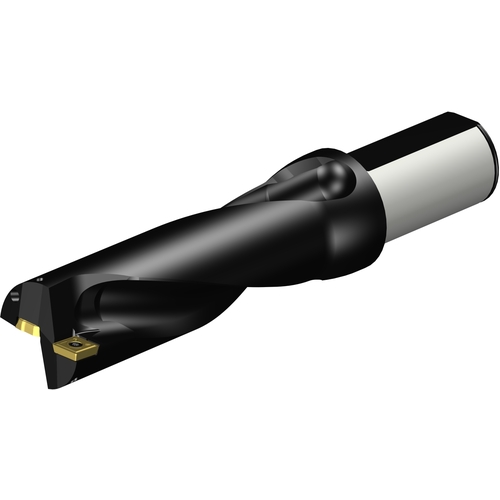

A880-D1687LX38-03 CORODRILL 880 U-DRILL
Indexable Insert Drill; 1.687″ Dia. × 5.06″ LU × 1-1/2″ Shank Dia. × 9.179″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1.687″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 5.06″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 5.23″ | Body Material | Steel |
| Functional Length (LF) | 6.394″ | Decimal Equivalent | 1.687″ |
| Overall Length (OAL) | 9.179″ | Model Number | A880-D1687LX38-03 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
3.814
