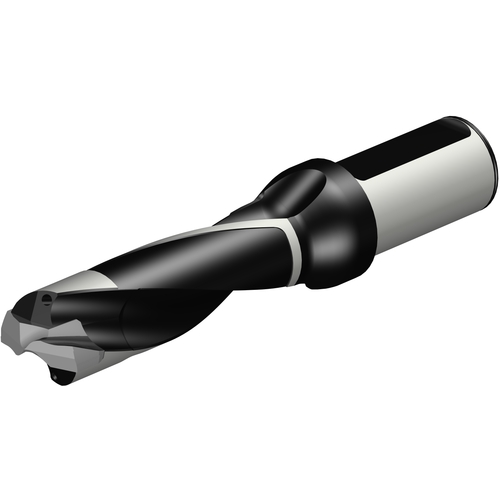

870-3100-31L32-3 CORODRILL 870
Indexable Insert Drill; 33 mm Dia. × 104.1 mm LU × 32 mm Shank Dia. × 194 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 33 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 104.1 mm | Cutting Diameter Minimum (DCN) | 31 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 33 mm |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 108 mm | Helix Angle | 20Degrees |
| Functional Length (LF) | 128.92 mm | Body Material | Steel |
| Overall Length (OAL) | 194 mm | Decimal Equivalent | 1.2992″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-3100-31L32-3 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
2.222
