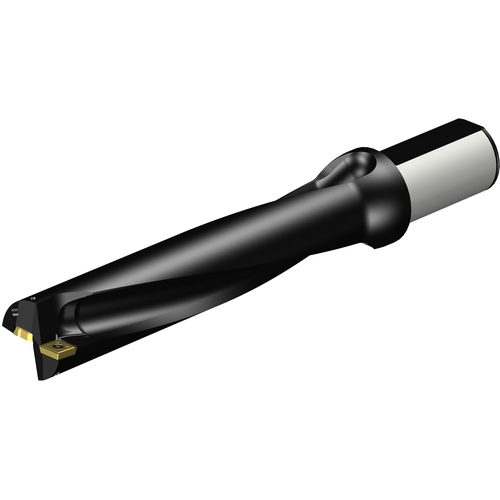

A880-D1562LX38-05 CORODRILL 880 U-DRILL
Indexable Insert Drill; 1.562″ Dia. × 7.81″ LU × 1-1/2″ Shank Dia. × 11.841″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1.562″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 7.81″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 13Degrees |
| Protruding Length (LPR) | 7.97″ | Body Material | Steel |
| Functional Length (LF) | 9.06″ | Decimal Equivalent | 1.562″ |
| Overall Length (OAL) | 11.841″ | Model Number | A880-D1562LX38-05 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
4.905
