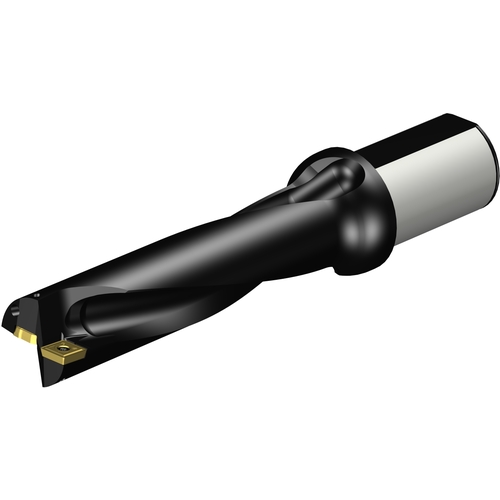

880-D4400L50-04 CORODRILL 880 U-DRILL
Indexable Insert Drill; 44 mm Dia. × 176 mm LU × 50 mm Shank Dia. × 291 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 44 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 176 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 17.5Degrees |
| Protruding Length (LPR) | 180 mm | Body Material | Steel |
| Functional Length (LF) | 210.28 mm | Decimal Equivalent | 1.7323″ |
| Overall Length (OAL) | 291 mm | Model Number | 880-D4400L50-04 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
5.798
