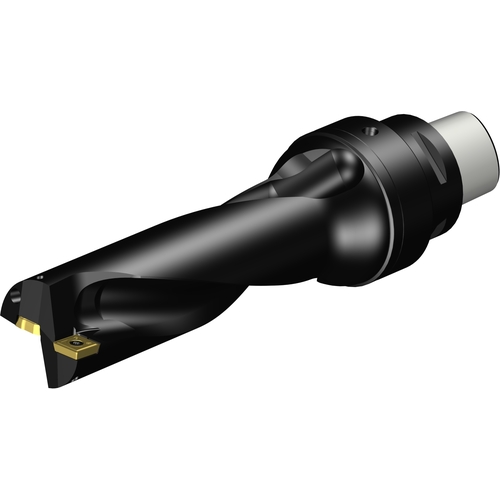

880-D4300C5-03M1 CORODRILL 880
Indexable Insert Drill; 43 mm Dia. × 129 mm LU x #5 Shank Dia. × 234 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 43 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 129 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | #5 | Effective No. of Teeth | 2 |
| Shank Type | Capto | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 133 mm | Body Material | Steel |
| Functional Length (LF) | 203.31 mm | Decimal Equivalent | 1.6929″ |
| Overall Length (OAL) | 234 mm | Model Number | 880-D4300C5-03M1 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
4.716
