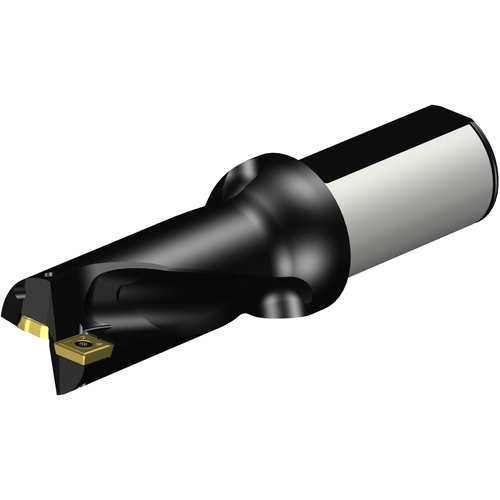

A880-D1437LX38-02 CORODRILL 880 U-DRILL
Indexable Insert Drill; 1.437″ Dia. × 2.87″ LU × 1-1/2″ Shank Dia. × 6.847″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1.437″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.87″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 3.05″ | Body Material | Steel |
| Functional Length (LF) | 4.064″ | Decimal Equivalent | 1.437″ |
| Overall Length (OAL) | 6.847″ | Model Number | A880-D1437LX38-02 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
2.690
