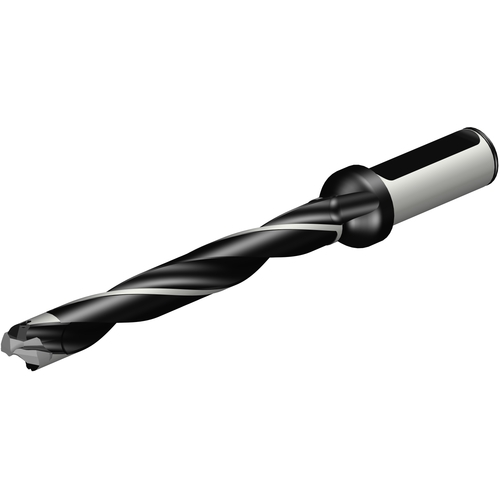

870-1500-15LX075-8 CORODRILL 870
Indexable Insert Drill; 0.626″ Dia. × 5.13″ LU × 3/4″ Shank Dia. × 7.835″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.626″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 5.13″ | Cutting Diameter Minimum (DCN) | 0.591″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Diameter Maximum (DCX) | 0.63″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Tool Type | 8xD | Helix Angle | 20Degrees |
| Protruding Length (LPR) | 5.24″ | Body Material | Steel |
| Functional Length (LF) | 5.77″ | Decimal Equivalent | 0.626″ |
| Overall Length (OAL) | 7.835″ | Model Number | 870-1500-15LX075-8 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Length
7.50000
Package Width
1.50000
Package Height
1.50000
Package Weight
.661
