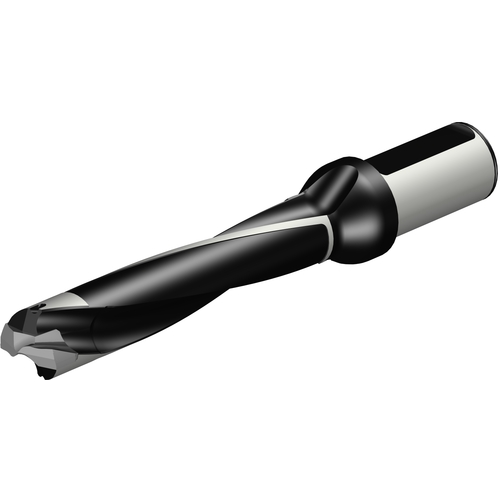

870-2800-28LX125-5 CORODRILL 870
Indexable Insert Drill; 1.138″ Dia. × 5.88″ LU × 1-1/4″ Shank Dia. × 9.409″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1.138″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 5.88″ | Cutting Diameter Minimum (DCN) | 1.102″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1.141″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 6.02″ | Helix Angle | 20Degrees |
| Functional Length (LF) | 6.877″ | Body Material | Steel |
| Overall Length (OAL) | 9.409″ | Decimal Equivalent | 1.138″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-2800-28LX125-5 |
Product Features
| Country of Origin | SWEDEN |
