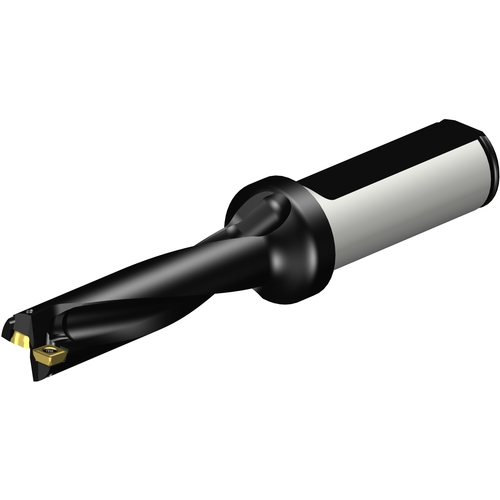

A880-D0562LX19-04 CORODRILL 880 U-DRILL
Indexable Insert Drill; 0.562″ Dia. × 2-1/4″ LU × 3/4″ Shank Dia. × 4.849″ OAL ; Steel
| Cutting Diameter (DC) | 0.562″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2-1/4″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 17.5Degrees |
| Protruding Length (LPR) | 2.36″ | Body Material | Steel |
| Shank Length (LS) | 1.968″ | Decimal Equivalent | 0.562″ |
| Functional Length (LF) | 2.869″ | Model Number | A880-D0562LX19-04 |
| Overall Length (OAL) | 4.849″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.461
