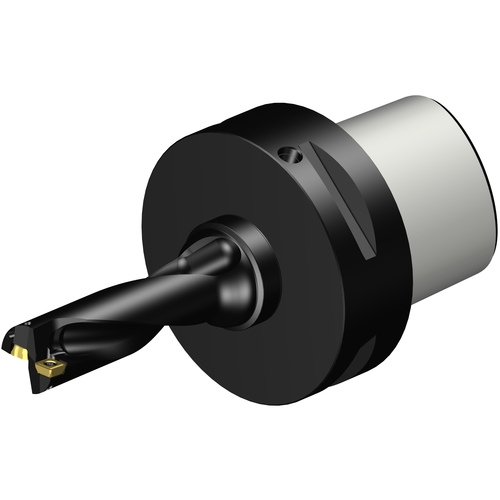

880-D1600C6-03 CORODRILL 880 CAPTO
Indexable Insert Drill; 16 mm Dia. × 48 mm LU x #6 Shank Dia. × 126 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 48 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | #6 | Effective No. of Teeth | 2 |
| Shank Type | Capto | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 51 mm | Body Material | Steel |
| Functional Length (LF) | 87.66 mm | Decimal Equivalent | 0.6299″ |
| Overall Length (OAL) | 126 mm | Model Number | 880-D1600C6-03 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
2.007
