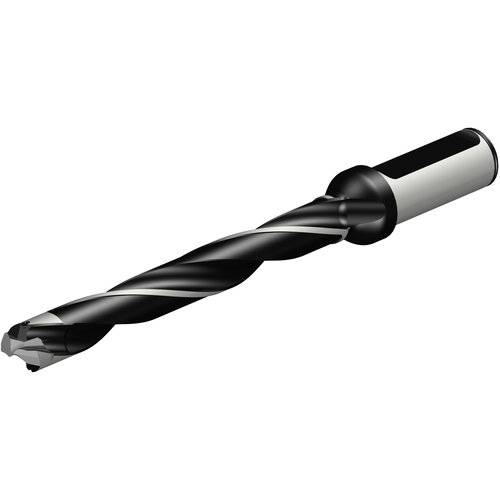

870-1600-16L20-8 CORODRILL 870
Indexable Insert Drill; 16.9 mm Dia. × 138.5 mm LU × 20 mm Shank Dia. × 207 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16.9 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 138.5 mm | Cutting Diameter Minimum (DCN) | 16 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 16.99 mm |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 141 mm | Helix Angle | 20Degrees |
| Functional Length (LF) | 154.42 mm | Body Material | Steel |
| Overall Length (OAL) | 207 mm | Decimal Equivalent | 0.6654″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-1600-16L20-8 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.728
