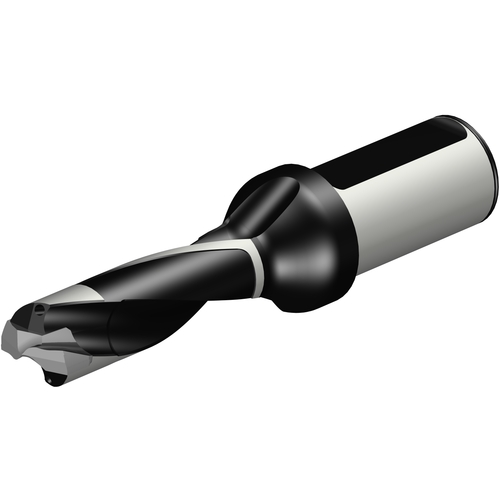

870-2400-24L32-3 CORODRILL 870
Indexable Insert Drill; 24.9 mm Dia. × 78.8 mm LU × 32 mm Shank Dia. × 168 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 24.9 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 78.8 mm | Cutting Diameter Minimum (DCN) | 24 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 24.99 mm |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 82 mm | Helix Angle | 20Degrees |
| Functional Length (LF) | 104.23 mm | Body Material | Steel |
| Overall Length (OAL) | 168 mm | Decimal Equivalent | 0.9803″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-2400-24L32-3 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
1.762
