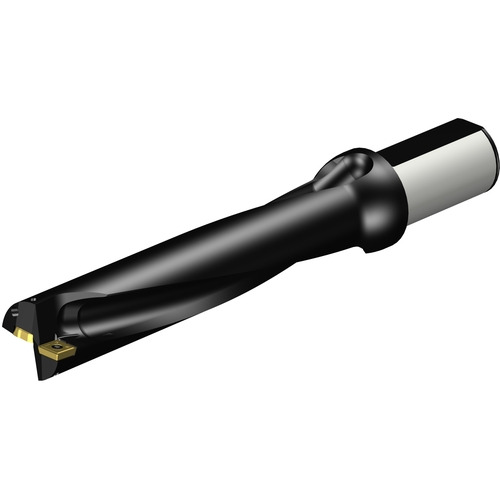

A880-D1500LX38-05 CORODRILL 880 U-DRILL
Indexable Insert Drill; 1-1/2″ Dia. × 7-1/2″ LU × 1-1/2″ Shank Dia. × 11.488″ OAL ; Steel
| Cutting Diameter (DC) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 7-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 13Degrees |
| Protruding Length (LPR) | 7.65″ | Body Material | Steel |
| Shank Length (LS) | 2.756″ | Decimal Equivalent | 1.5″ |
| Functional Length (LF) | 8.708″ | Model Number | A880-D1500LX38-05 |
| Overall Length (OAL) | 11.488″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
3.898
