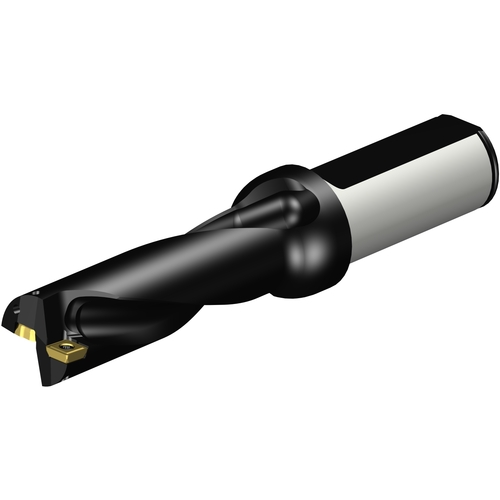

880-D2350L25-03 CORODRILL 880 U-DRILL
Indexable Insert Drill; 23.5 mm Dia. × 71 mm LU × 25 mm Shank Dia. × 149 mm OAL ; Steel
| Cutting Diameter (DC) | 23.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 71 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 74 mm | Body Material | Steel |
| Functional Length (LF) | 92.54 mm | Decimal Equivalent | 0.9252″ |
| Overall Length (OAL) | 149 mm | Model Number | 880-D2350L25-03 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.977
