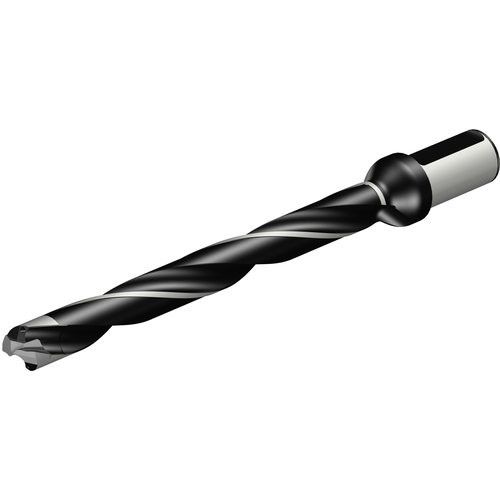

870-2500-25LX125-10 CORODRILL 870
Indexable Insert Drill; 1.02″ Dia. × 10.39″ LU × 1-1/4″ Shank Dia. × 13.898″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1.02″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 10.39″ | Cutting Diameter Minimum (DCN) | 0.984″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1.023″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 10.51″ | Helix Angle | 20Degrees |
| Functional Length (LF) | 11.382″ | Body Material | Steel |
| Overall Length (OAL) | 13.898″ | Decimal Equivalent | 1.02″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-2500-25LX125-10 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
14.25000
Package Width
2.50000
Package Height
2.50000
Package Weight
2.685
