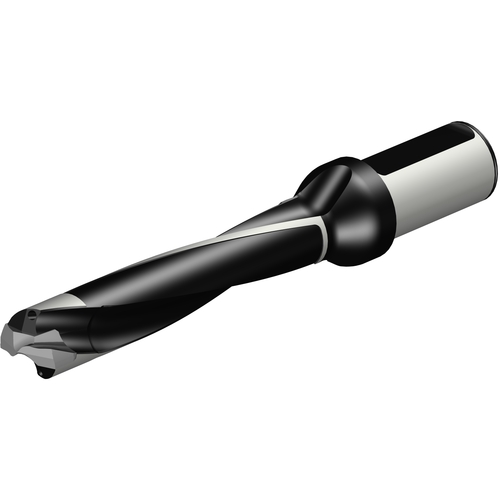

870-2700-27L32-5 CORODRILL 870
Indexable Insert Drill; 27.5 mm Dia. × 144.2 mm LU × 32 mm Shank Dia. × 235 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 27.5 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 144.2 mm | Cutting Diameter Minimum (DCN) | 27 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 27.99 mm |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 148 mm | Helix Angle | 20Degrees |
| Functional Length (LF) | 170.86 mm | Body Material | Steel |
| Overall Length (OAL) | 235 mm | Decimal Equivalent | 1.0827″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-2700-27L32-5 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
2.199
