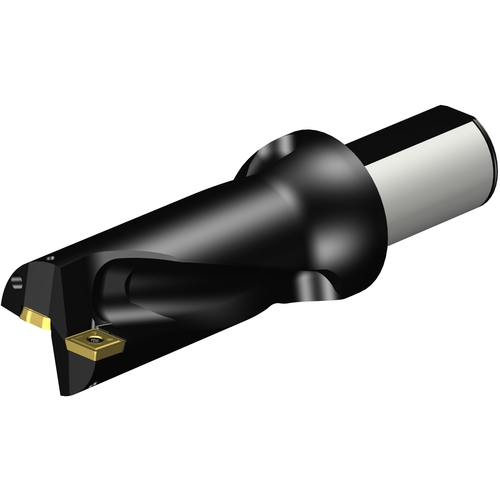

880-D5000L40-02 CORODRILL 880 U-DRILL
Indexable Insert Drill; 50 mm Dia. × 100 mm LU × 40 mm Shank Dia. × 210 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 105 mm | Body Material | Steel |
| Functional Length (LF) | 139.19 mm | Decimal Equivalent | 1.9685″ |
| Overall Length (OAL) | 210 mm | Model Number | 880-D5000L40-02 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
4.478
