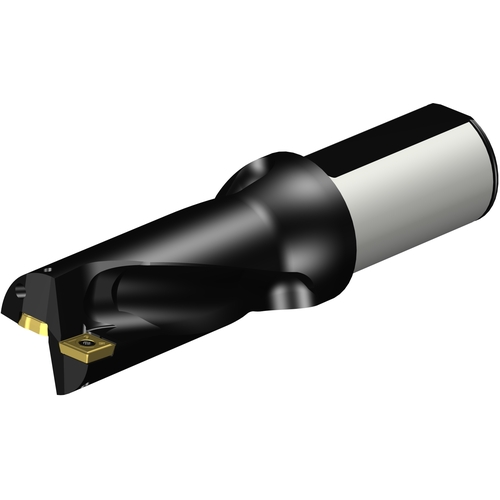

880-D4000L40-02 CORODRILL 880 U-DRILL
Indexable Insert Drill; 40 mm Dia. × 80 mm LU × 40 mm Shank Dia. × 183 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 84 mm | Body Material | Steel |
| Functional Length (LF) | 112.29 mm | Decimal Equivalent | 1.5748″ |
| Overall Length (OAL) | 183 mm | Model Number | 880-D4000L40-02 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
3.115
