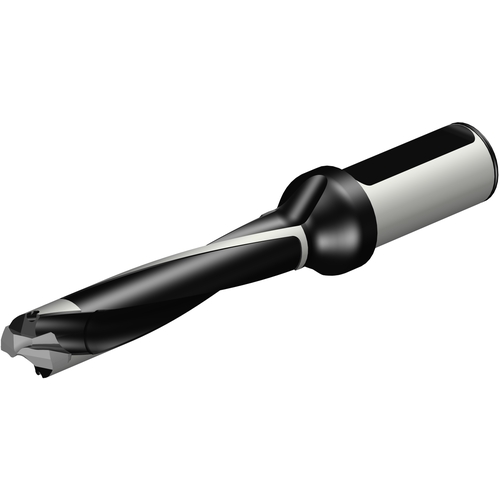

870-2000-20LX1-5 CORODRILL 870
Indexable Insert Drill; 0.823″ Dia. × 4.26″ LU × 1″ Shank Dia. × 7.402″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.823″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 4.26″ | Cutting Diameter Minimum (DCN) | 0.787″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 0.826″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Tool Type | 5xD | Helix Angle | 20Degrees |
| Protruding Length (LPR) | 4.37″ | Body Material | Steel |
| Functional Length (LF) | 5.072″ | Decimal Equivalent | 0.823″ |
| Overall Length (OAL) | 7.402″ | Model Number | 870-2000-20LX1-5 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
7.20000
Package Width
1.90000
Package Height
1.90000
Package Weight
1.08
