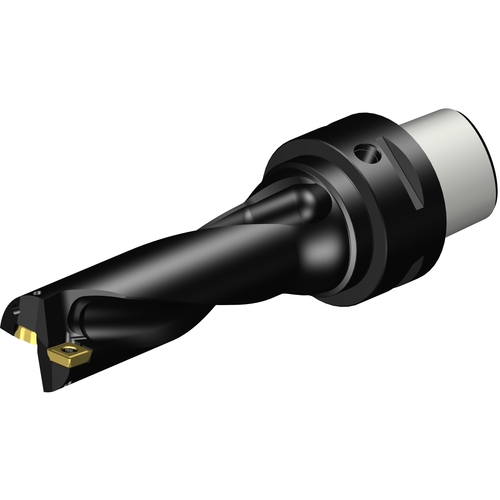

880-D2300C4-03 CORODRILL 880 CAPTO
Indexable Insert Drill; 23 mm Dia. × 69 mm LU x #4 Shank Dia. × 135 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 23 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 69 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | #4 | Effective No. of Teeth | 2 |
| Shank Type | Capto | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 72 mm | Body Material | Steel |
| Functional Length (LF) | 110.55 mm | Decimal Equivalent | 0.9055″ |
| Overall Length (OAL) | 135 mm | Model Number | 880-D2300C4-03 |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
1.058
