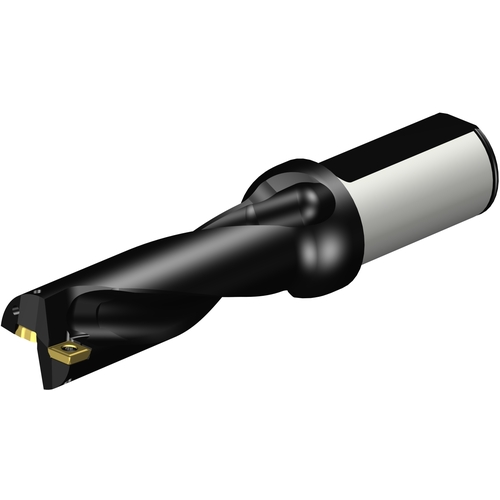

A880-D1125LX31-03 CORODRILL 880 U-DRILL
Indexable Insert Drill; 1-1/8″ Dia. × 3-3/8″ LU × 1-1/4″ Shank Dia. × 6.763″ OAL ; Steel
| Cutting Diameter (DC) | 1-1/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 3-3/8″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 3.54″ | Body Material | Steel |
| Shank Length (LS) | 2.362″ | Decimal Equivalent | 1.125″ |
| Functional Length (LF) | 4.38″ | Model Number | A880-D1125LX31-03 |
| Overall Length (OAL) | 6.763″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
1.587
