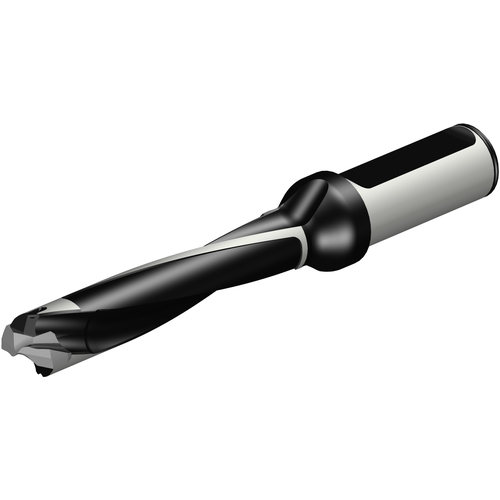

870170017L205 DRILL
Indexable Insert Drill; 17.9 mm Dia. × 92.7 mm LU × 20 mm Shank Dia. × 162 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 17.9 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 92.7 mm | Cutting Diameter Minimum (DCN) | 17 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 17.99 mm |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 95 mm | Helix Angle | 20Degrees |
| Functional Length (LF) | 109.27 mm | Body Material | Steel |
| Overall Length (OAL) | 162 mm | Decimal Equivalent | 0.7047″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-1700-17L20-5 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.589
