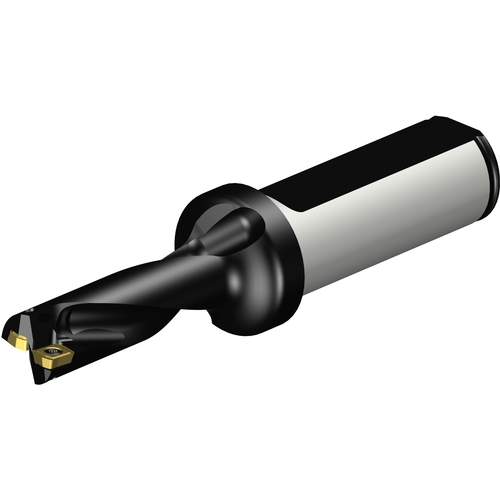

A880D0500LX1903 1/2 3X
Indexable Insert Drill; 1/2″ Dia. × 1-1/2″ LU × 3/4″ Shank Dia. × 4.051″ OAL ; Steel
| Cutting Diameter (DC) | 1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 1.6″ | Body Material | Steel |
| Shank Length (LS) | 1.968″ | Decimal Equivalent | 0.5″ |
| Functional Length (LF) | 2.067″ | Model Number | A880-D0500LX19-03 |
| Overall Length (OAL) | 4.051″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.428
