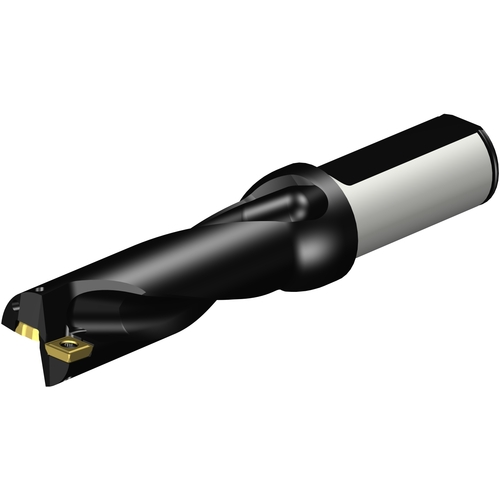

A880D1000LX2503 1″ 3X
Indexable Insert Drill; 1″ Dia. × 3″ LU × 1″ Shank Dia. × 6.137″ OAL ; Steel
| Cutting Diameter (DC) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 3″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 3.15″ | Body Material | Steel |
| Shank Length (LS) | 2.205″ | Decimal Equivalent | 1″ |
| Functional Length (LF) | 3.912″ | Model Number | A880-D1000LX25-03 |
| Overall Length (OAL) | 6.137″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
6.00000
Package Width
2.00000
Package Height
2.00000
Package Weight
1.067
