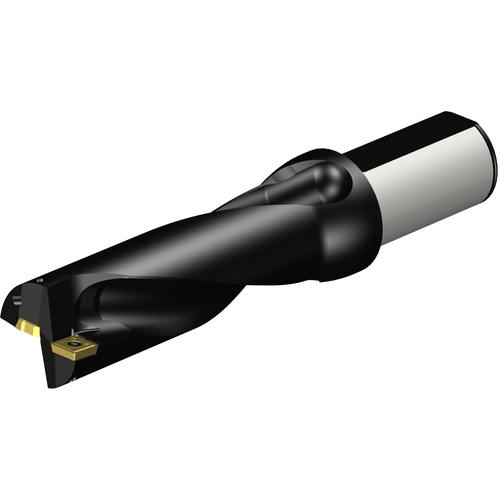

A880-D1625LX38-03 CORODRILL 880 U-DRILL
Indexable Insert Drill; 1-5/8″ Dia. × 4-7/8″ LU × 1-1/2″ Shank Dia. × 8.95″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1-5/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 4-7/8″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 5.04″ | Body Material | Steel |
| Shank Length (LS) | 2.756″ | Decimal Equivalent | 1.625″ |
| Functional Length (LF) | 6.166″ | Model Number | A880-D1625LX38-03 |
| Overall Length (OAL) | 8.95″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
3.563
