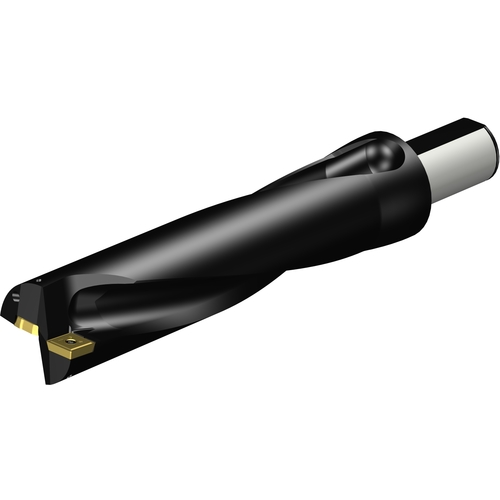

A880-D2250LX38-04 CORODRILL 880 U-DRILL
Indexable Insert Drill; 2-1/4″ Dia. × 9″ LU × 1-1/2″ Shank Dia. × 13.513″ OAL ; Steel
| Cutting Diameter (DC) | 2-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 9″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 17.5Degrees |
| Protruding Length (LPR) | 9.22″ | Body Material | Steel |
| Shank Length (LS) | 2.756″ | Decimal Equivalent | 2.25″ |
| Functional Length (LF) | 10.723″ | Model Number | A880-D2250LX38-04 |
| Overall Length (OAL) | 13.513″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
8.752
