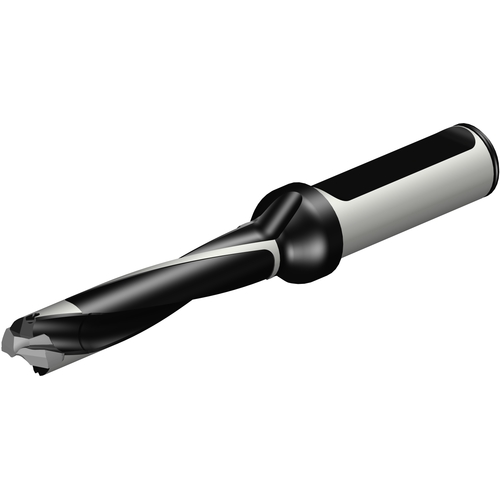

870125011LX0635 DRILL
Indexable Insert Drill; 0.508″ Dia. × 2.64″ LU × 5/8″ Shank Dia. × 5.118″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.508″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 2.64″ | Cutting Diameter Minimum (DCN) | 0.492″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Diameter Maximum (DCX) | 0.511″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Tool Type | 5xD | Helix Angle | 20Degrees |
| Protruding Length (LPR) | 2.72″ | Body Material | Steel |
| Functional Length (LF) | 3.15″ | Decimal Equivalent | 0.508″ |
| Overall Length (OAL) | 5.118″ | Model Number | 870-1250-11LX063-5 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
4.00000
Package Width
4.00000
Package Height
4.00000
Package Weight
0.364
