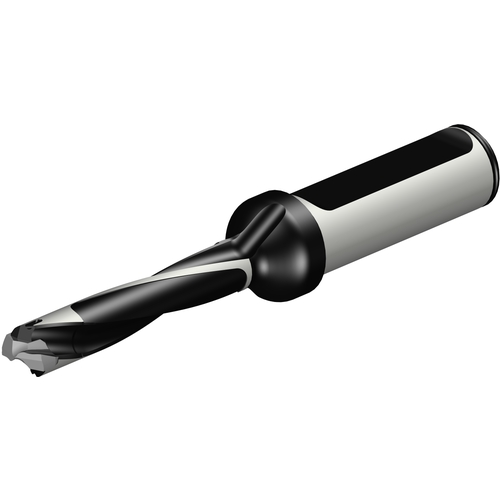

870-1000-6L16-5 CORODRILL 870
Indexable Insert Drill; 10.4 mm Dia. × 54.1 mm LU × 16 mm Shank Dia. × 117 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10.4 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 54.1 mm | Cutting Diameter Minimum (DCN) | 10 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 10.49 mm |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 56 mm | Helix Angle | 20Degrees |
| Functional Length (LF) | 67.4 mm | Body Material | Steel |
| Overall Length (OAL) | 117 mm | Decimal Equivalent | 0.4094″ |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | 870-1000-6L16-5 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.3
