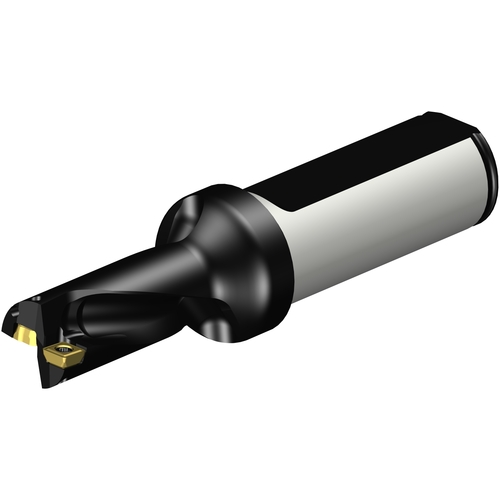

880-D1500L20-02 CORODRILL 880 U-DRILL
Indexable Insert Drill; 15 mm Dia. × 30 mm LU × 20 mm Shank Dia. × 97 mm OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 15 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 30 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 33 mm | Body Material | Steel |
| Functional Length (LF) | 46.67 mm | Decimal Equivalent | 0.5906″ |
| Overall Length (OAL) | 97 mm | Model Number | 880-D1500L20-02 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.42
