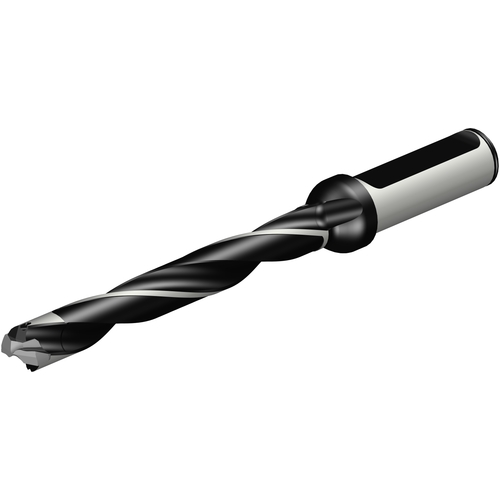

870-1250-11LX063-8 CORODRILL 870
Indexable Insert Drill; 0.508″ Dia. × 4.17″ LU × 5/8″ Shank Dia. × 6.654″ OAL ; Steel
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.508″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 4.17″ | Cutting Diameter Minimum (DCN) | 0.492″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Diameter Maximum (DCX) | 0.511″ |
| Shank Type | Round | Effective No. of Teeth | 2 |
| Tool Type | 8xD | Helix Angle | 20Degrees |
| Protruding Length (LPR) | 4-1/4″ | Body Material | Steel |
| Functional Length (LF) | 4.686″ | Decimal Equivalent | 0.508″ |
| Overall Length (OAL) | 6.654″ | Model Number | 870-1250-11LX063-8 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
6.75000
Package Width
1.50000
Package Height
1.50000
Package Weight
0.406
