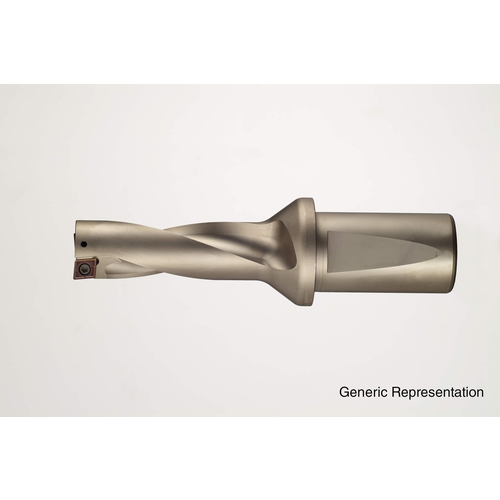

WDX260D5S32 Indexable Drill
Indexable Insert Drill; 26 mm Dia. × 133 mm LU × 32 mm Shank Dia. × 213 mm OAL
| Cutting Diameter (DC) | 26 mm | Overall Length (OAL) | 213 mm |
| Usable Length (LU) | 133 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Shank Length (LS) | 60 mm | Master Insert Identification (MIID) | WDXT 073506 |
| Functional Length (LF) | 153 mm | Decimal Equivalent | 1.0236″ |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
3
