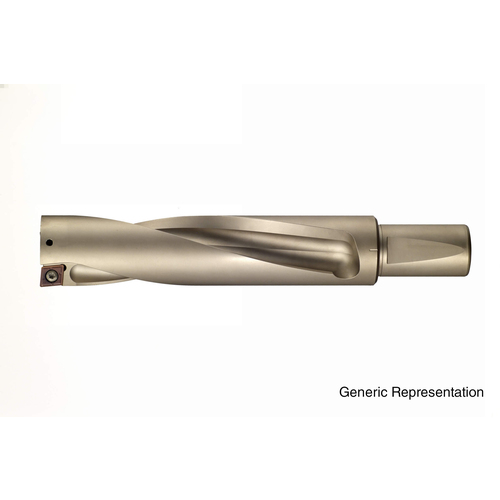

WDX640D3S40 Indexable Drill
Indexable Insert Drill; 64 mm Dia. × 200 mm LU × 40 mm Shank Dia. × 302 mm OAL
| Cutting Diameter (DC) | 64 mm | Overall Length (OAL) | 302 mm |
| Usable Length (LU) | 200 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Shank Length (LS) | 70 mm | Master Insert Identification (MIID) | WDXT 186012 |
| Functional Length (LF) | 232 mm | Decimal Equivalent | 2.5197″ |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
3
