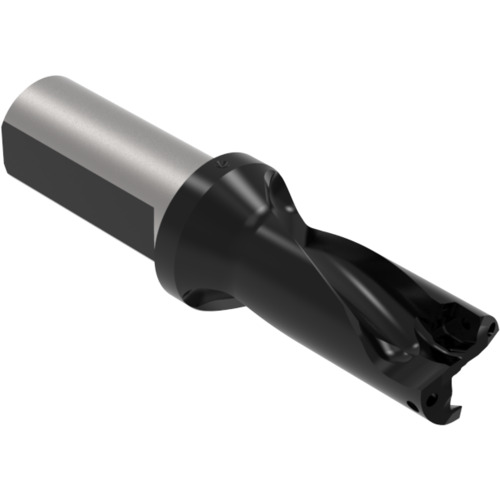

D2072400M-25FM IC Drill
Indexable Insert Drill; 24 mm Dia. × 48 mm LU × 25 mm Shank Dia. × 122.9 mm OAL ; 2D
| Cutting Diameter (DC) | 24 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 48 mm | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Diameter Minimum (DCN) | 24 mm |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 24 mm |
| Protruding Length (LPR) | 68.9 mm | Measurement Type | Metric |
| Functional Length (LF) | 48 mm | Length Group | 2D |
| Overall Length (OAL) | 122.9 mm | Master Insert Identification (MIID) | 4T-070305 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 0.9449″ |
Product Features
| Country of Origin | USA |
