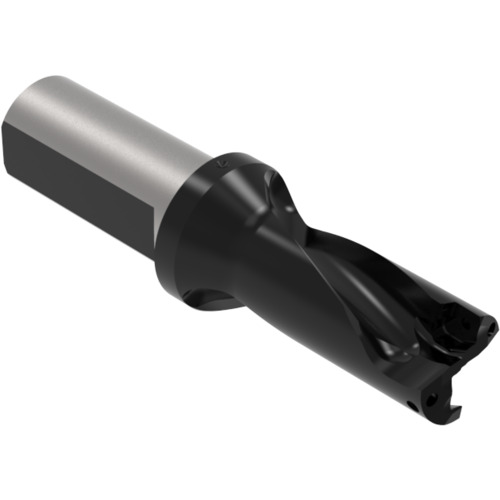

D2072200M-25FM IC Drill
Indexable Insert Drill; 22 mm Dia. × 44 mm LU × 25 mm Shank Dia. × 118.9 mm OAL ; 2D
| Cutting Diameter (DC) | 22 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 44 mm | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Diameter Minimum (DCN) | 22 mm |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 22 mm |
| Protruding Length (LPR) | 64.9 mm | Measurement Type | Metric |
| Functional Length (LF) | 44 mm | Length Group | 2D |
| Overall Length (OAL) | 118.9 mm | Master Insert Identification (MIID) | 4T-070305 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 0.8661″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
15
