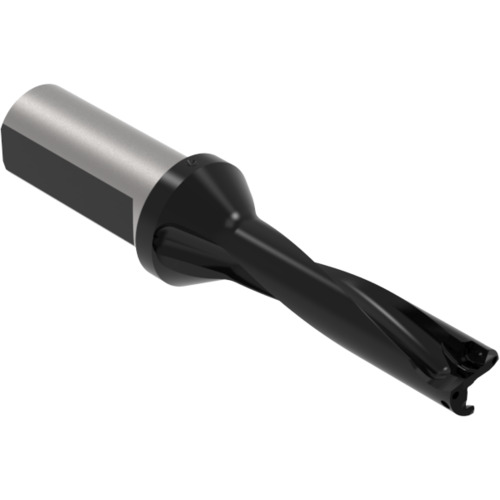

D4051550M-25FM IC Drill
Indexable Insert Drill; 15.5 mm Dia. × 62 mm LU × 25 mm Shank Dia. × 139.5 mm OAL ; 4D
| Cutting Diameter (DC) | 15.5 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 62 mm | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Diameter Minimum (DCN) | 15.5 mm |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 15.5 mm |
| Protruding Length (LPR) | 85.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 62 mm | Length Group | 4D |
| Overall Length (OAL) | 139.5 mm | Master Insert Identification (MIID) | 4T-05T203 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 0.6102″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
15.0000
