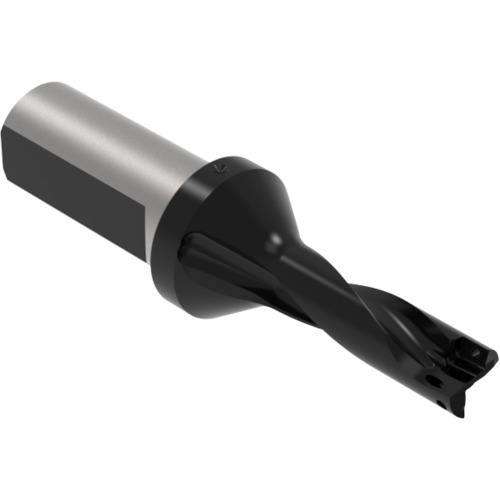

D3031300M-075F IC Drill
Indexable Insert Drill; 13 mm Dia. × 1.535″ LU × 3/4″ Shank Dia. × 4.071″ OAL ; 3D
| Cutting Diameter (DC) | 13 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1.535″ | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Diameter Minimum (DCN) | 13 mm |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 13 mm |
| Protruding Length (LPR) | 2.378″ | Measurement Type | Metric |
| Functional Length (LF) | 1.535″ | Length Group | 3D |
| Overall Length (OAL) | 4.071″ | Master Insert Identification (MIID) | 4T-030203 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 0.5118″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.0000
