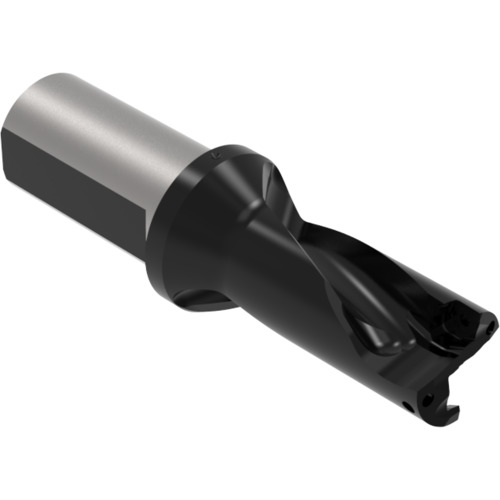

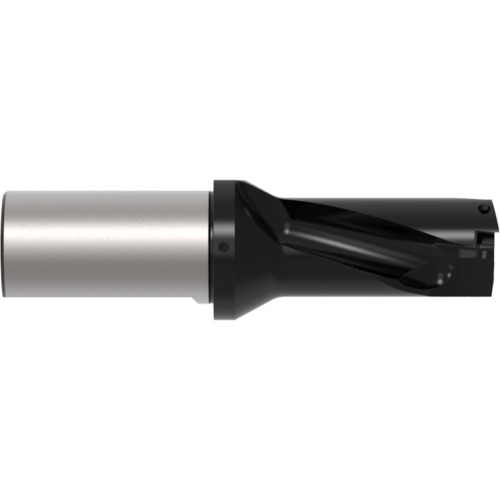

D2093100M-32FM IC Drill
Indexable Insert Drill; 31 mm Dia. × 62 mm LU × 32 mm Shank Dia. × 143.7 mm OAL ; 2D
| Cutting Diameter (DC) | 31 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 62 mm | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Minimum (DCN) | 31 mm |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 31 mm |
| Protruding Length (LPR) | 84.7 mm | Measurement Type | Metric |
| Functional Length (LF) | 62 mm | Length Group | 2D |
| Overall Length (OAL) | 143.7 mm | Master Insert Identification (MIID) | 4T-09T306 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 1.2205″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.57
