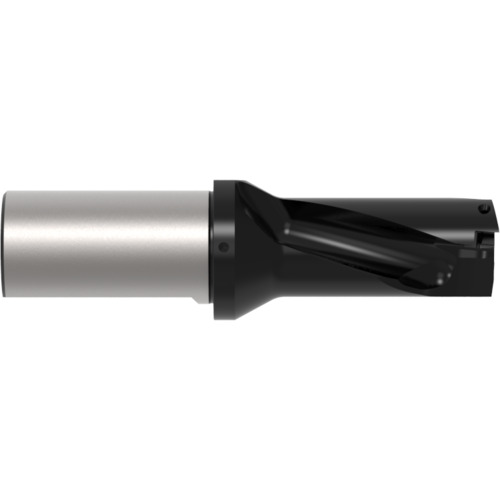

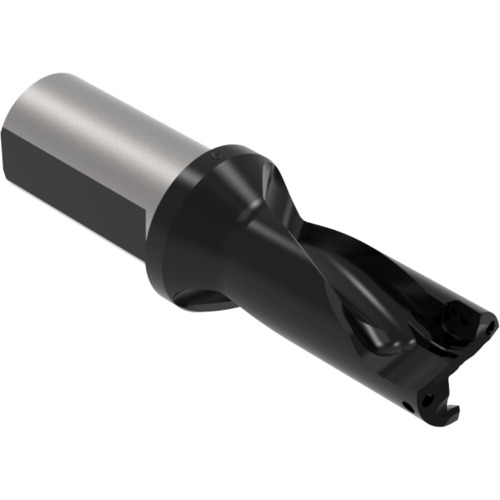

D2093000M-32FM IC Drill
Indexable Insert Drill; 3 mm Dia. × 6 mm LU × 32 mm Shank Dia. × 141.7 mm OAL ; 2D
| Cutting Diameter (DC) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 6 mm | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Minimum (DCN) | 3 mm |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 3 mm |
| Protruding Length (LPR) | 82.7 mm | Measurement Type | Metric |
| Functional Length (LF) | 6 mm | Length Group | 2D |
| Overall Length (OAL) | 141.7 mm | Master Insert Identification (MIID) | 4T-09T306 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 0.1181″ |
Product Features
| Country of Origin | USA |
