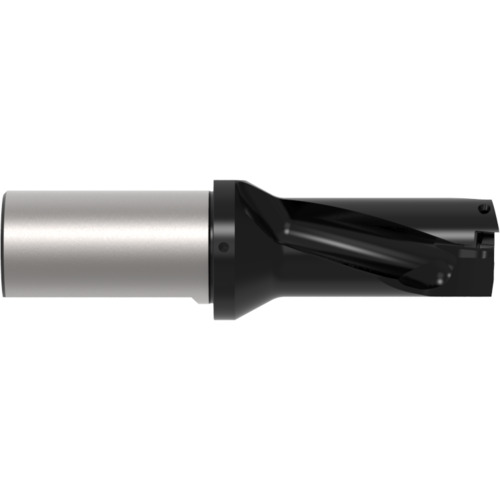

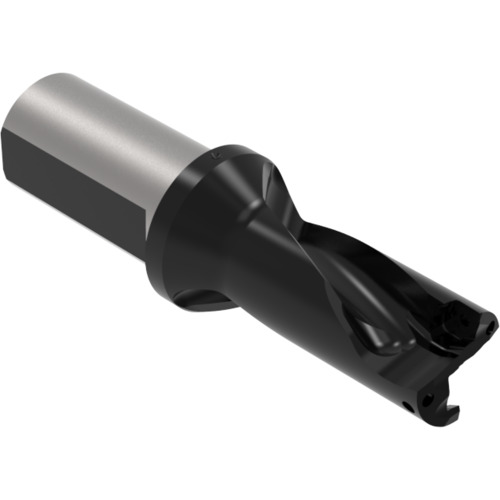

D2092900M-32FM IC Drill
Indexable Insert Drill; 29 mm Dia. × 58 mm LU × 32 mm Shank Dia. × 139.7 mm OAL ; 2D
| Cutting Diameter (DC) | 29 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 58 mm | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Minimum (DCN) | 29 mm |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 29 mm |
| Protruding Length (LPR) | 80.7 mm | Measurement Type | Metric |
| Functional Length (LF) | 58 mm | Length Group | 2D |
| Overall Length (OAL) | 139.7 mm | Master Insert Identification (MIID) | 4T-09T306 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 1.1417″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
15
