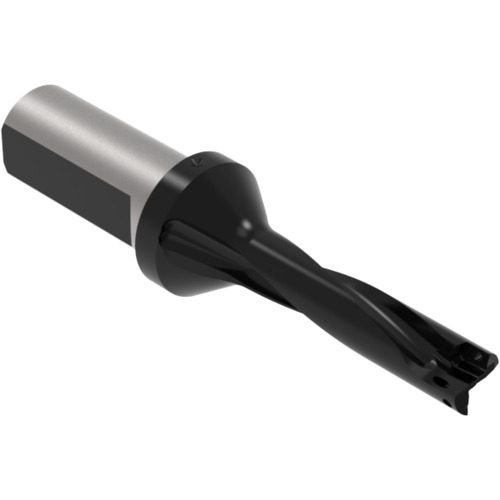

D4031250M-20FM IC Drill
Indexable Insert Drill; 12.5 mm Dia. × 5 mm LU × 2 mm Shank Dia. × 114 mm OAL ; 4D
| Cutting Diameter (DC) | 12.5 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 5 mm | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 2 mm | Cutting Diameter Minimum (DCN) | 12.5 mm |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 12.5 mm |
| Protruding Length (LPR) | 71 mm | Measurement Type | Metric |
| Functional Length (LF) | 5 mm | Length Group | 4D |
| Overall Length (OAL) | 114 mm | Master Insert Identification (MIID) | 4T-030203 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 0.4921″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
15.0000
