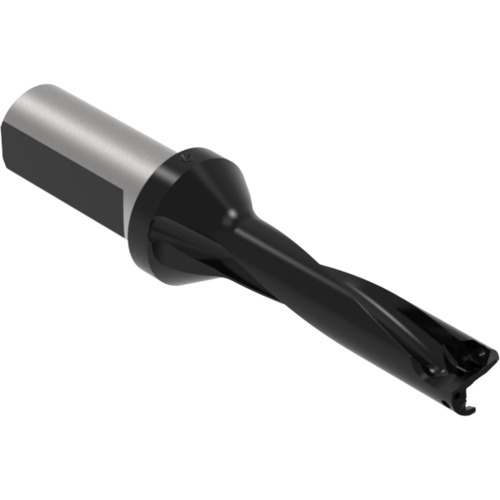

D4040562I-20FM IC Drill
Indexable Insert Drill; 9/16″ Dia. × 57.1 mm LU × 2 mm Shank Dia. × 120.4 mm OAL ; 4D
| Cutting Diameter (DC) | 9/16″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 57.1 mm | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 2 mm | Cutting Diameter Minimum (DCN) | 9/16″ |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 9/16″ |
| Protruding Length (LPR) | 77.4 mm | Measurement Type | Inch |
| Functional Length (LF) | 57.1 mm | Length Group | 4D |
| Overall Length (OAL) | 120.4 mm | Master Insert Identification (MIID) | 4T-040203 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 0.5625″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
15.0000
