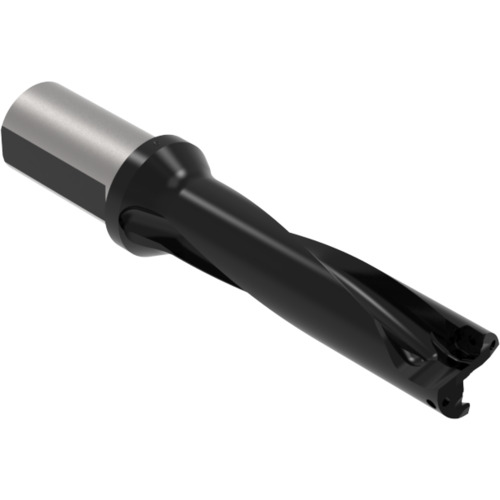

D4111500I-40FM IC Drill
Indexable Insert Drill; 1-1/2″ Dia. × 152.4 mm LU × 4 mm Shank Dia. × 247.4 mm OAL ; 4D
| Cutting Diameter (DC) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 152.4 mm | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Cutting Diameter Minimum (DCN) | 1-1/2″ |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Protruding Length (LPR) | 178.4 mm | Measurement Type | Inch |
| Functional Length (LF) | 152.4 mm | Length Group | 4D |
| Overall Length (OAL) | 247.4 mm | Master Insert Identification (MIID) | 4T-11T306 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 1.5″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
15.0000
