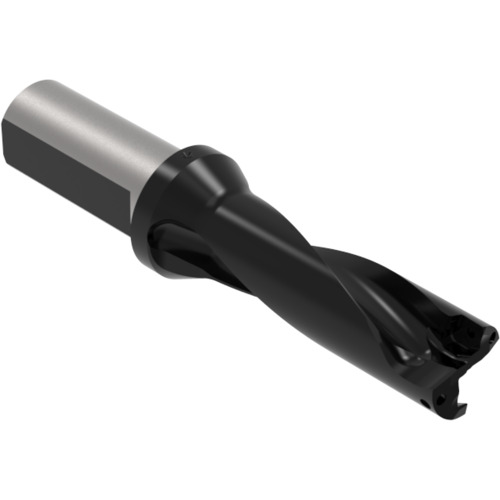

D3072250M-100F IC Drill
Indexable Insert Drill; 22.5 mm Dia. × 2.657″ LU × 1″ Shank Dia. × 5.606″ OAL ; 3D
| Cutting Diameter (DC) | 22.5 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 2.657″ | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Minimum (DCN) | 22.5 mm |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 22.5 mm |
| Protruding Length (LPR) | 3.48″ | Measurement Type | Metric |
| Functional Length (LF) | 2.657″ | Length Group | 3D |
| Overall Length (OAL) | 5.606″ | Master Insert Identification (MIID) | 4T-070305 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 0.8858″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
15.0000
