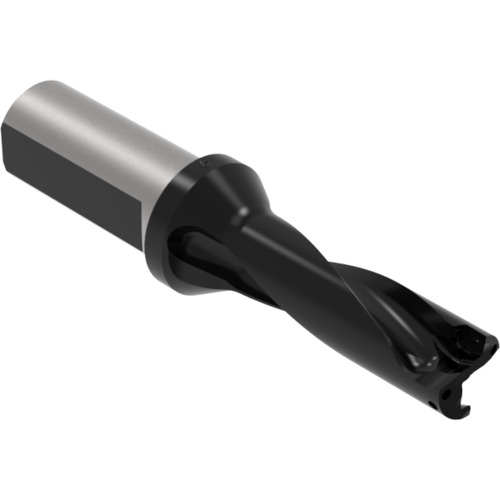

D3061850M-25FM IC Drill
Indexable Insert Drill; 18.5 mm Dia. × 55 mm LU × 25 mm Shank Dia. × 130.9 mm OAL ; 3D
| Cutting Diameter (DC) | 18.5 mm | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 55 mm | Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Diameter Minimum (DCN) | 18.5 mm |
| Shank Type | Flanged | Cutting Diameter Maximum (DCX) | 18.5 mm |
| Protruding Length (LPR) | 76.9 mm | Measurement Type | Metric |
| Functional Length (LF) | 55 mm | Length Group | 3D |
| Overall Length (OAL) | 130.9 mm | Master Insert Identification (MIID) | 4T-06T204 |
| Coolant Supply Property (CSP) | External | Decimal Equivalent | 0.7283″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.0000
