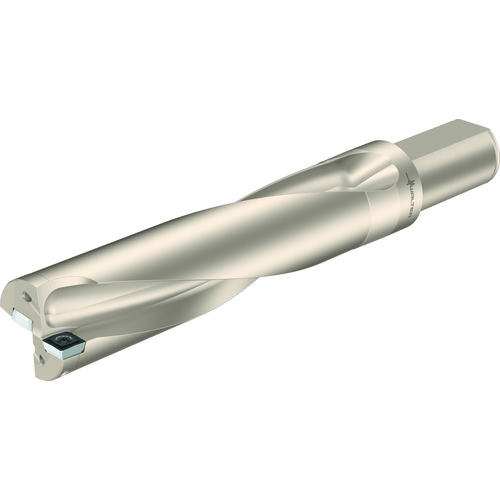

B4214.F40.49.Z1.196R-7
Indexable Insert Drill; 1.9291″ Dia. × 7-23/32″ LU × 1.5748″ Shank Dia. × 12-3/64″ OAL ; 4D
| Cutting Diameter (DC) | 1.9291″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 7-23/32″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.5748″ | Length Group | 4D |
| Shank Type | Weldon | Effective No. of Teeth | 2 |
| Protruding Length (LPR) | 8-53/64″ | Flute Type | Helical |
| Shank Length (LS) | 2-3/4″ | Helix Angle | 18Degrees|CW |
| Functional Length (LF) | 9-17/64″ | Decimal Equivalent | 1.9291″ |
| Overall Length (OAL) | 12-3/64″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
6.405
