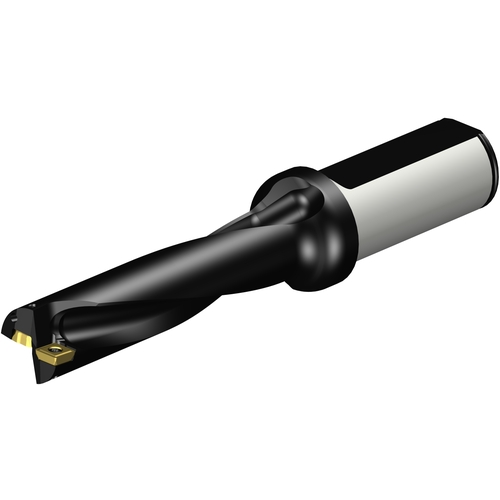

A880-D0812LX25-04 CORODRILL 880 U-DRILL
Indexable Insert Drill; 0.812″ Dia. × 3-1/4″ LU × 1″ Shank Dia. × 6.259″ OAL ; Steel
| Cutting Diameter (DC) | 0.812″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 3-1/4″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 17.5Degrees |
| Protruding Length (LPR) | 3.38″ | Body Material | Steel |
| Shank Length (LS) | 2.205″ | Decimal Equivalent | 0.812″ |
| Functional Length (LF) | 4.038″ | Model Number | A880-D0812LX25-04 |
| Overall Length (OAL) | 6.259″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
3.00000
Package Width
3.00000
Package Height
3.00000
Package Weight
0.91
