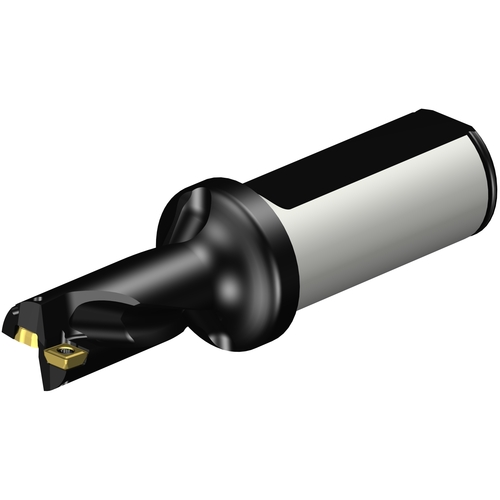

A880D0687LX2502 11/16 2X
Indexable Insert Drill; 0.687″ Dia. × 1.37″ LU × 1″ Shank Dia. × 4.297″ OAL ; Steel
| Cutting Diameter (DC) | 0.687″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.37″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Effective No. of Teeth | 2 |
| Shank Type | Round | Helix Angle | 22Degrees |
| Protruding Length (LPR) | 1-1/2″ | Body Material | Steel |
| Shank Length (LS) | 2.205″ | Decimal Equivalent | 0.687″ |
| Functional Length (LF) | 2.077″ | Model Number | A880-D0687LX25-02 |
| Overall Length (OAL) | 4.297″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.783
